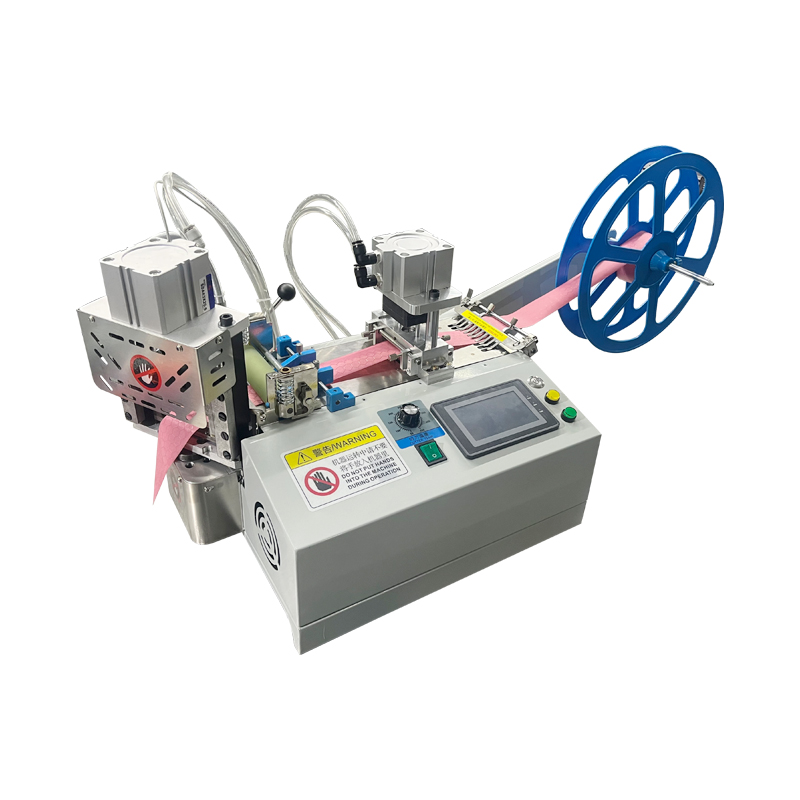

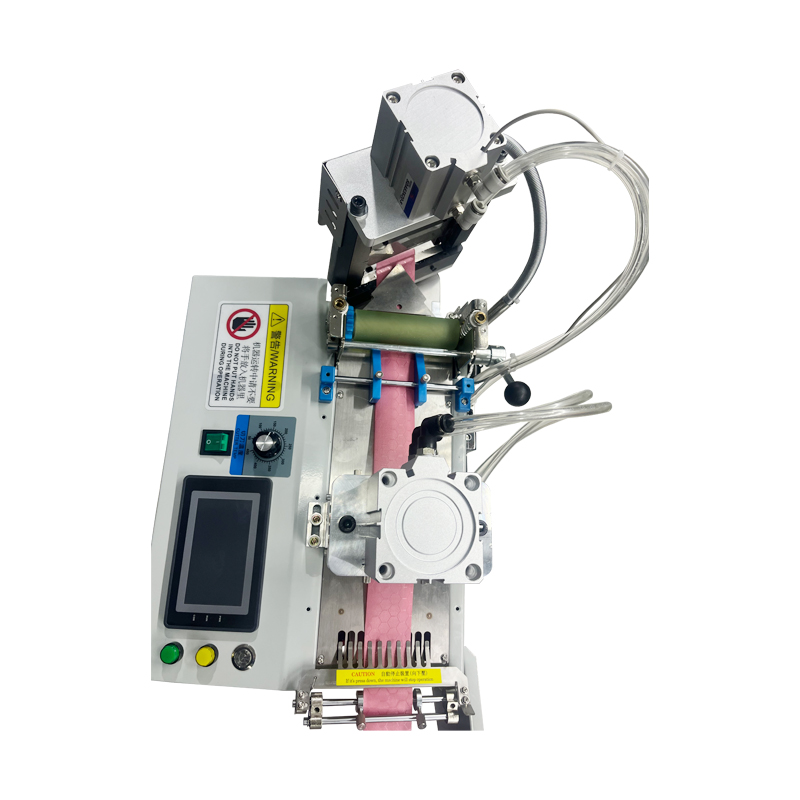

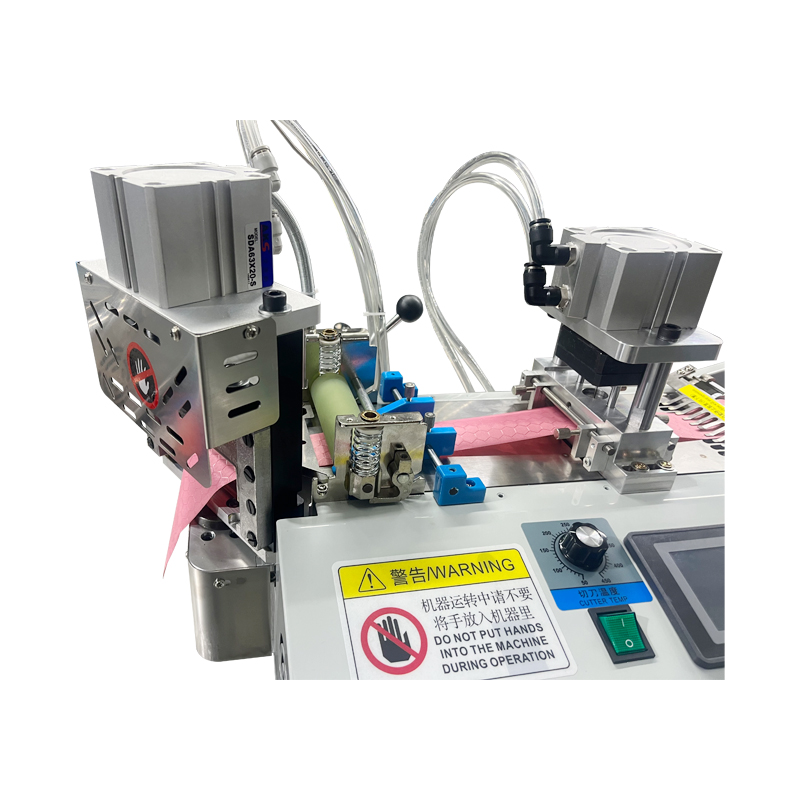

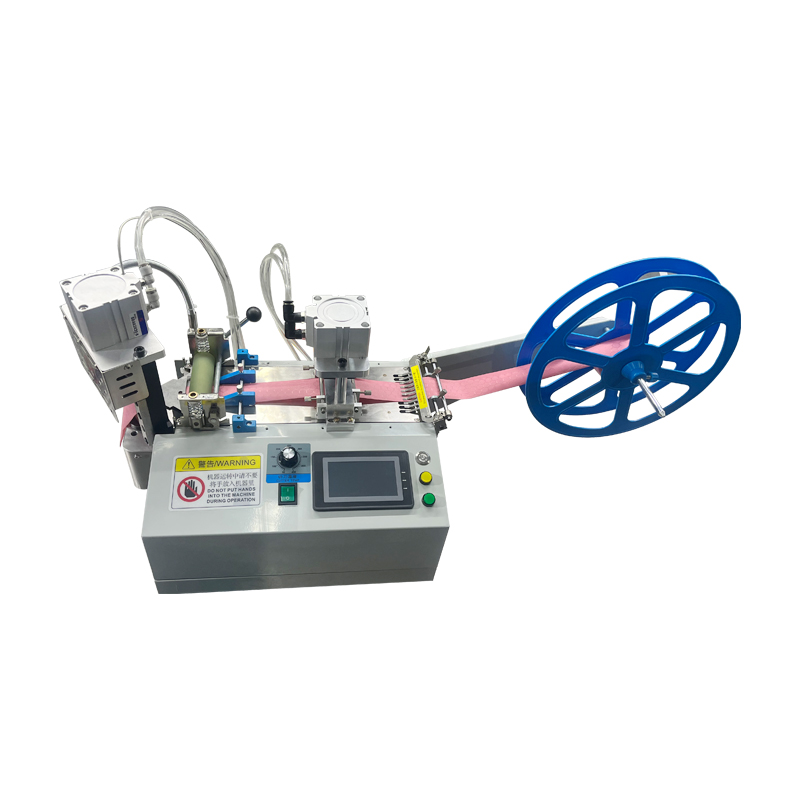

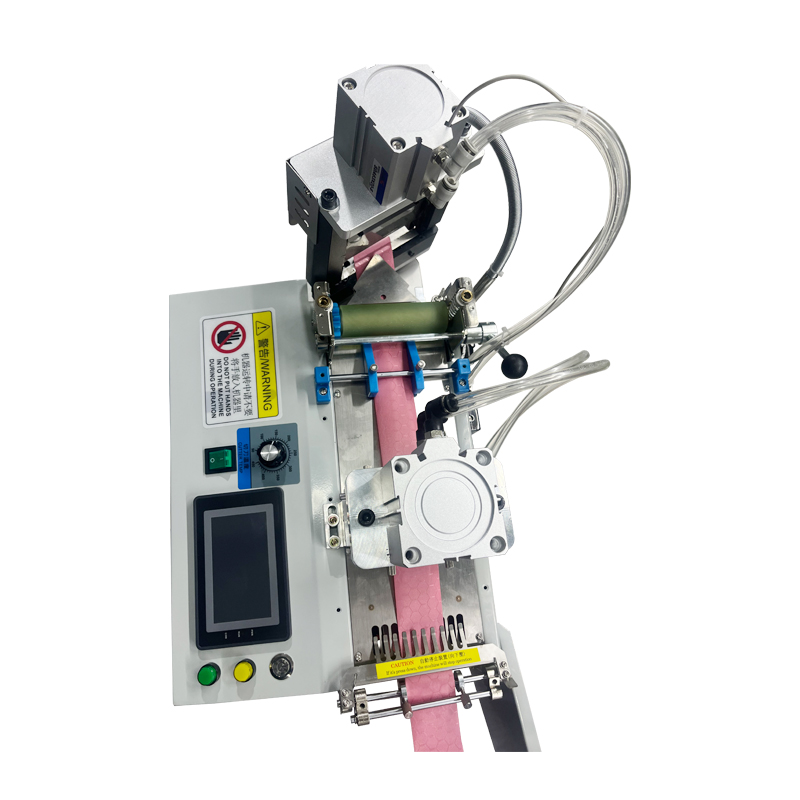

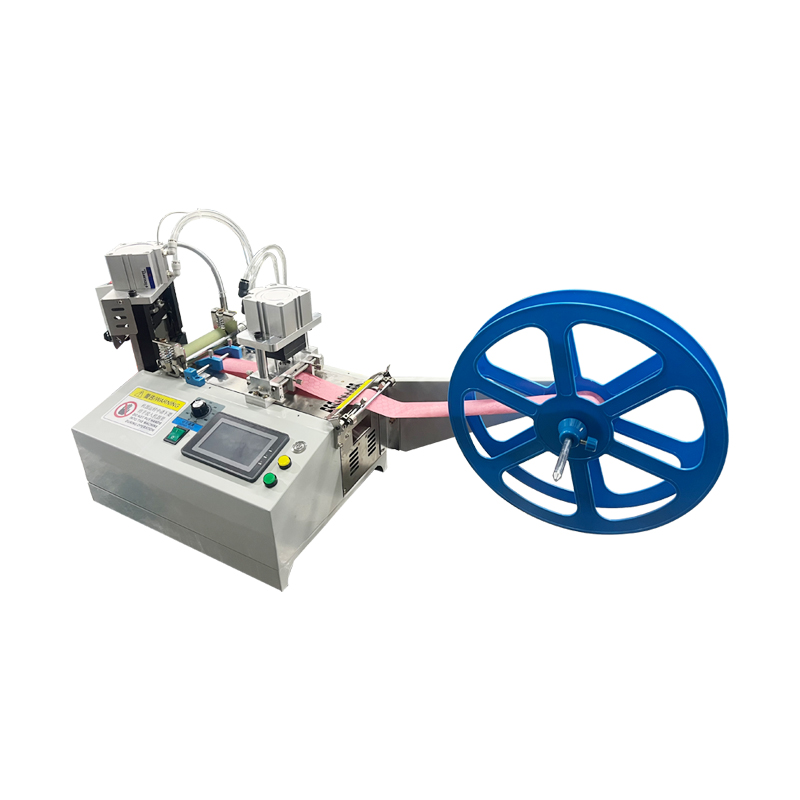

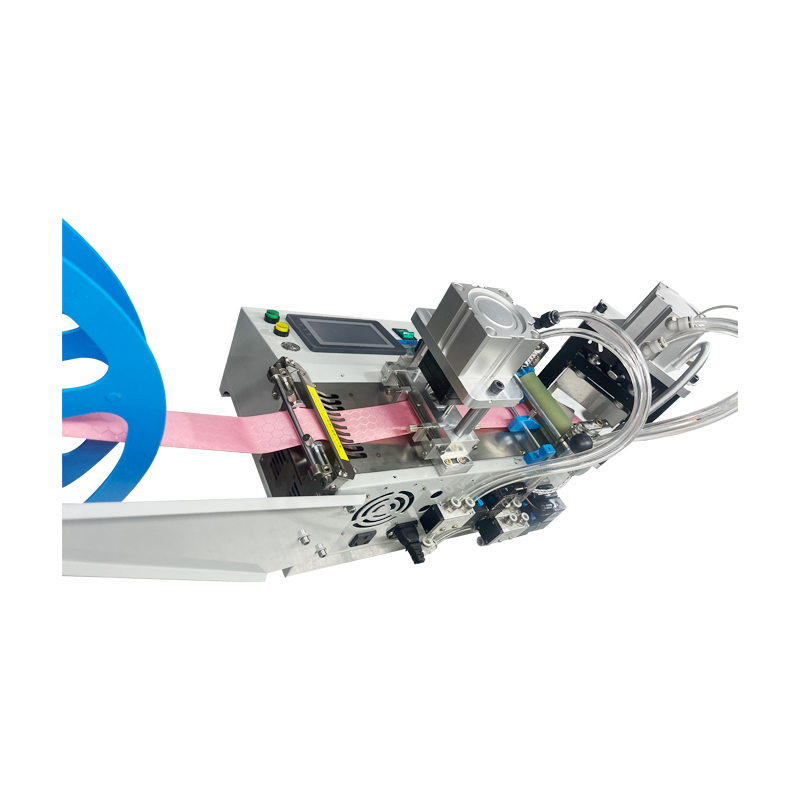

HB-120CHP Angle Rotary Cold and Hot Webbing and Leather Belt Cold Punching and Cutting Machine
| Model | HB-988CHP | Voltage | 110V/220V |
| Punching diameter | The hole diameter can be customized as needed; cold punch | Power | 1000W |
| Name | Cold punching hot and cold cutting machine | Number of punches | 1-40PCS can set by screen |
| Cut Type: | Hot and cold，can cut 6 shapes | Cutting Width: | Max 40mm |
| Cutable Materials: | Velcro leather pvc | Cutting Length: | 1-99999mm |

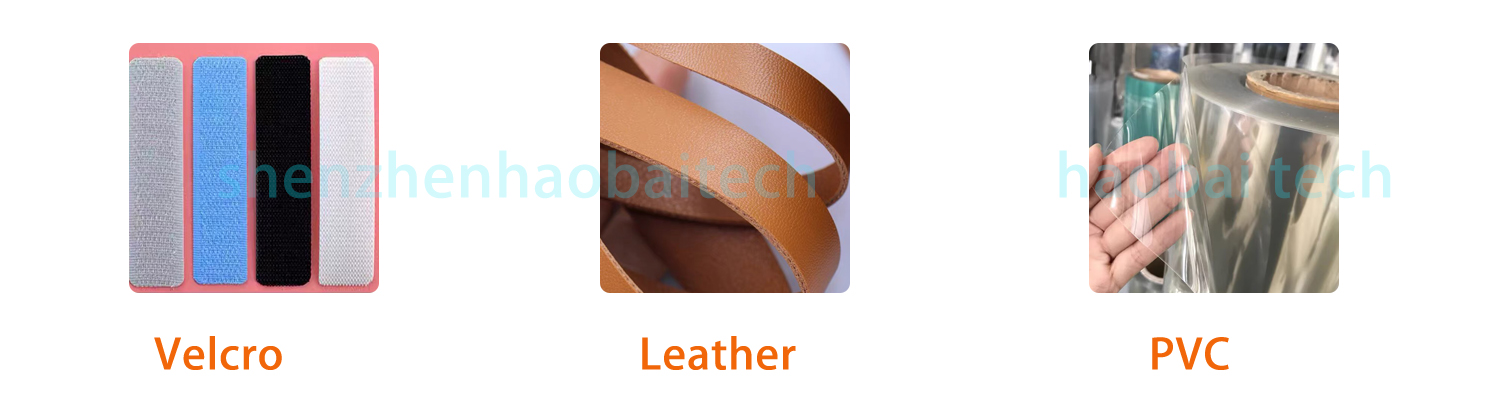

Application scenarios: materials that can be cut

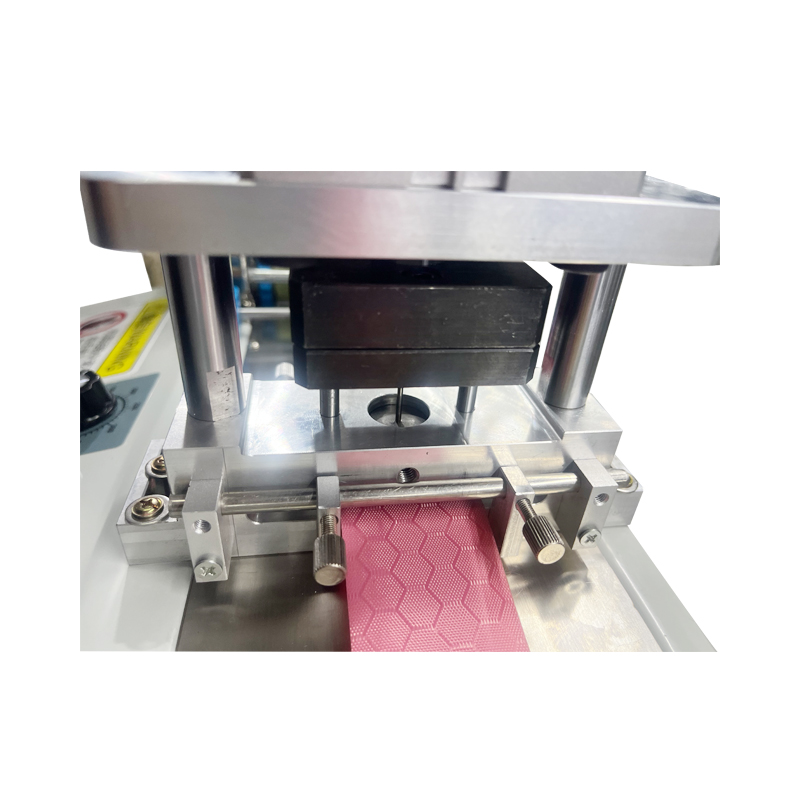

The punching function is cold punching, with a maximum punching diameter of 5mm. However, one set of molds can only punch one diameter. To punch different diameters, custom molds are required.

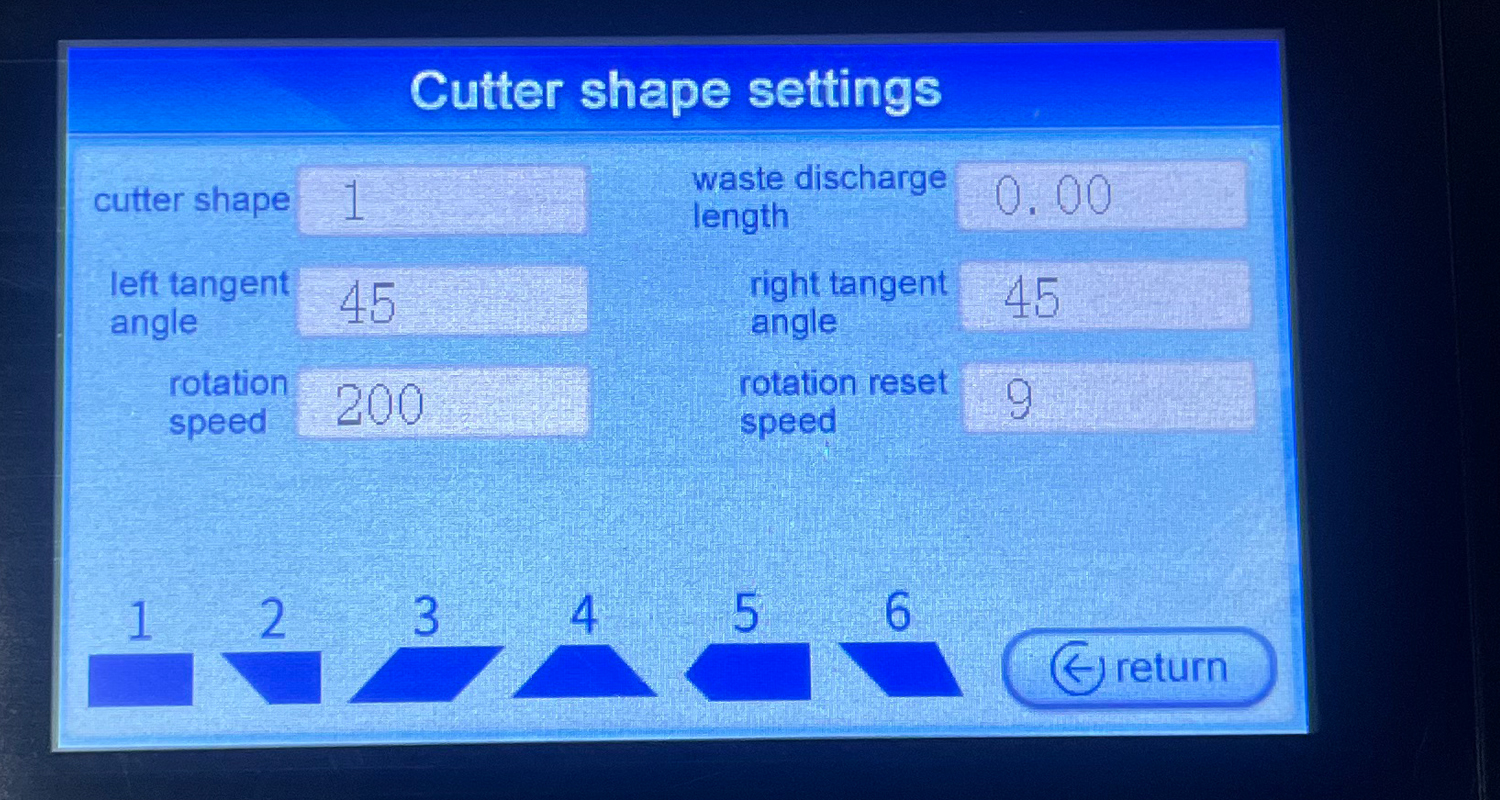

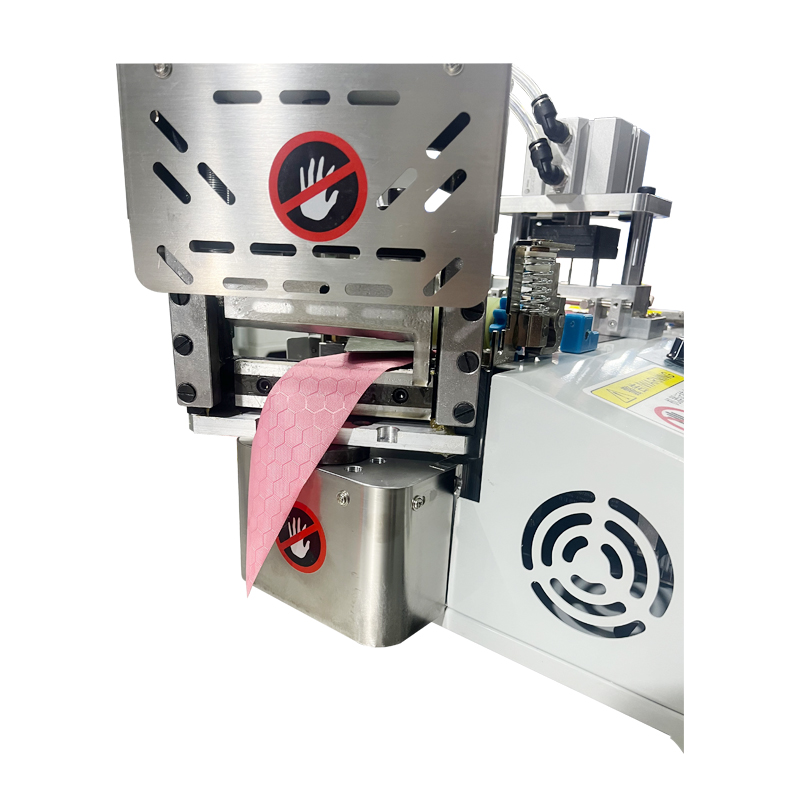

It can cut 6 shapes, and the cutting shape and angle can be set via the screen. It can also be used in conjunction with the punching function.

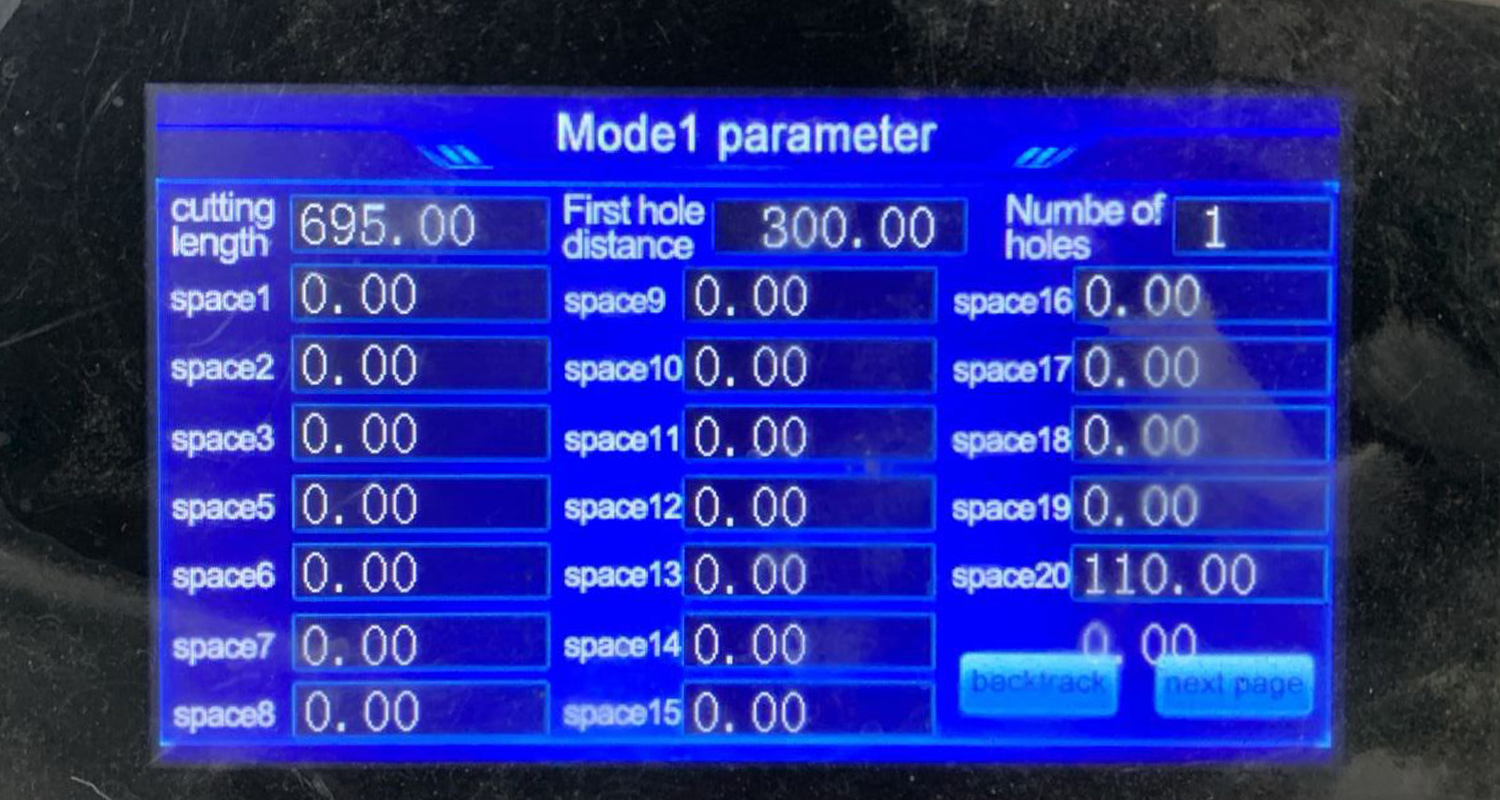

The maximum number of holes punched at one time is 40 pieces.The distance between holes can be set via screen parameters.

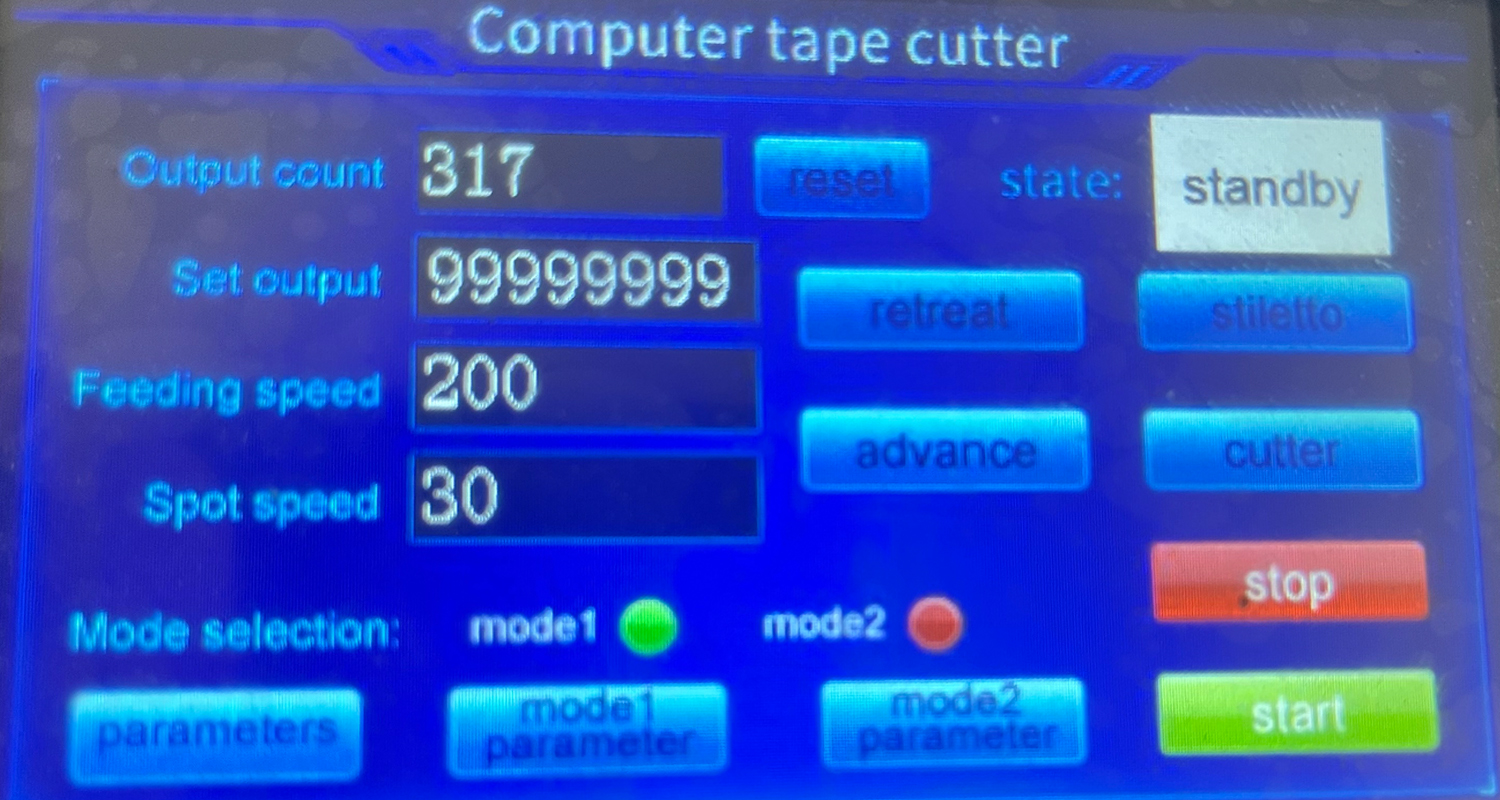

Speed and total length can be set via touchscreen.

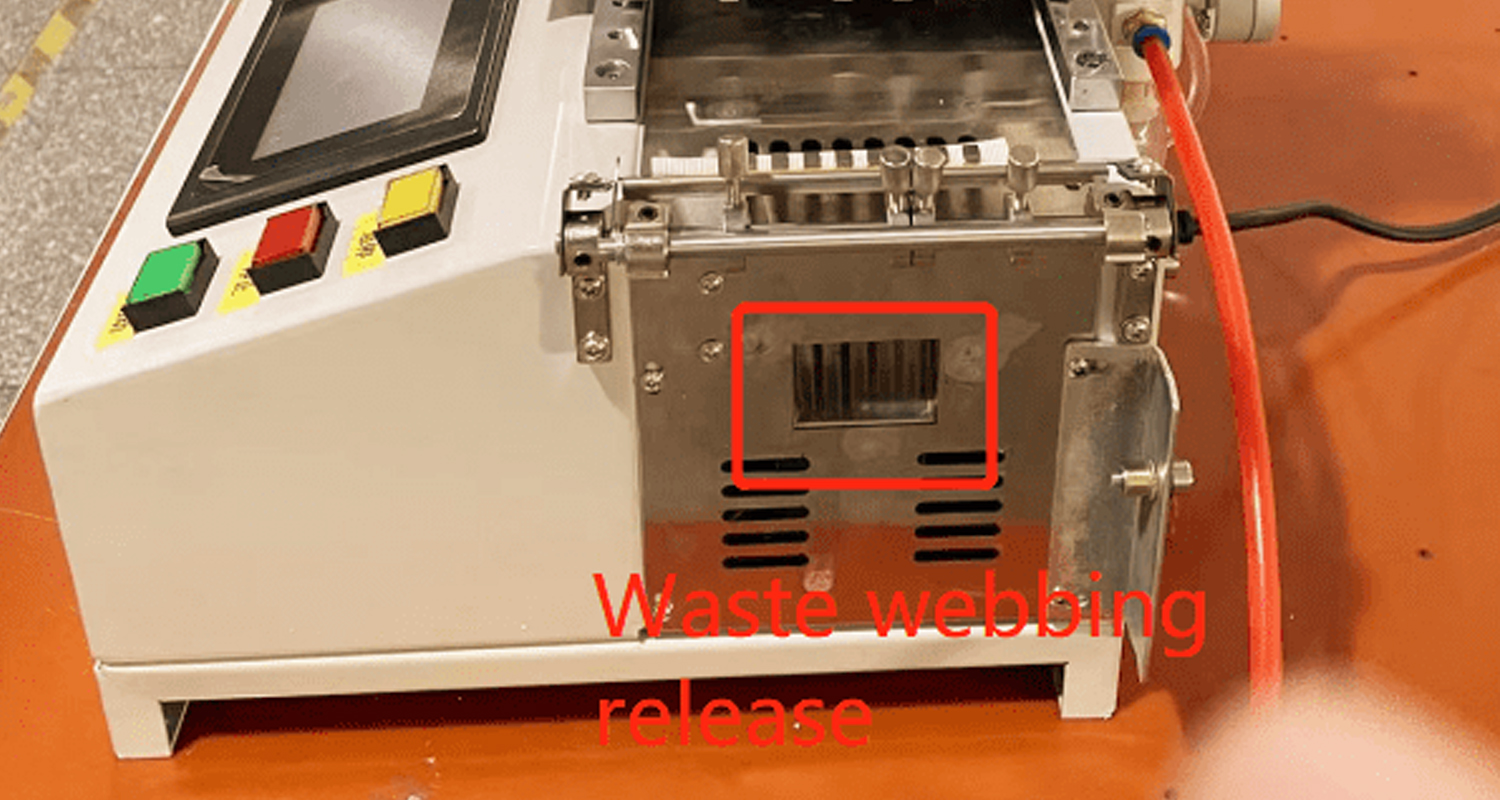

Waste material from punching can be discharged through the waste discharge channel.
